Prepare other CAN ID?
Author Message
Reply with quote
Post Prepare other CAN ID?
If set some AnalogX, can i use other ID ?
My understanding is only prepare 0xE4612.
i want to use 2 or 3 AnalogX.
i mean need 8〜12 channel.

View user's profile Send private message
Reply with quote
Post Gentle remainder
Hello ,
i saw similar issue past subject.
But i could not see answer.
Could U tell me something idea?

View user's profile Send private message
Reply with quote
Post
You can have up to 4 AnalogX on the same CAN bus. You just need to make sure each is set for a unique address.

For details on selecting the address see the section "CAN Base ID" on this page:

https://wiki.autosportlabs.com/AnalogX

Also note, the AnalogX has a CAN termination resistor across the CAN lines by default, you will likely need to remove some or all of these depending on your CAN bus. At most there should be two termination resistors on the CAN bus (one at each end of the bus is ideal).

View user's profile Send private message
Reply with quote
Post
Hello Ferg-san,

Thank you for your reply.

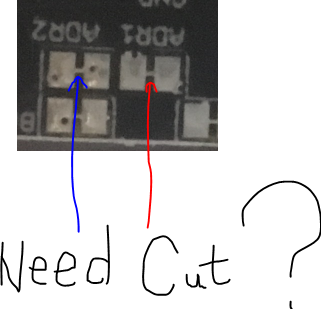

Need to cut the bridge each ADR?
How do i cut them?

View user's profile Send private message
Reply with quote
Post
Hi, we have a chart here that shows how to configure the base address, with instructions on how to cut.

https://wiki.autosportlabs.com/AnalogX#CAN_base_ID

Thank you,


_________________
Brent Picasso
Founder, Autosport Labs
Facebook | Twitter
