Inductive wheel Sensor
Author Message
Reply with quote
Post Inductive wheel Sensor
Hello every one,

I just purchase a racecapture pro 2 for a prototype we are developing in our company.

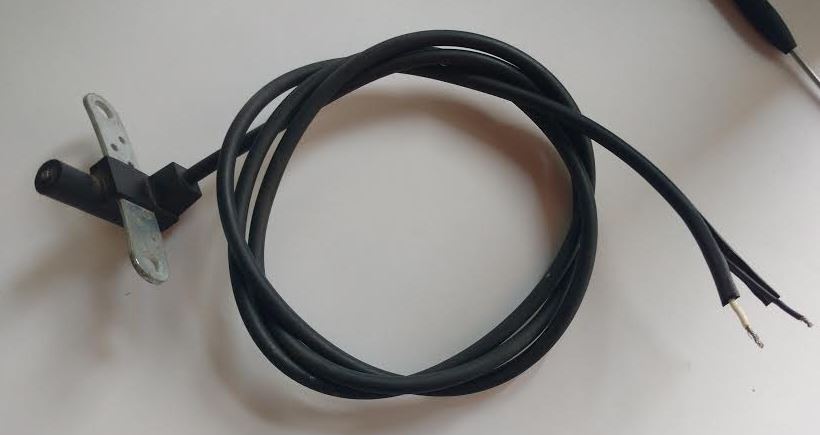

I was trying to find information related to the installation of an inductive wheel sensor, we use to have an other datalogger system and hope i can use the sensors we already have.

I already tried hooking up the white wire to the Pulse Input 3 and the black to the 5v reference, the white wire to the Pulse Input 3, the black to the 5v reference and the metal in the body to the ground, the white wire to the Pulse Input 3, the black to the ground.

the only thing that i haven't tried yet is this hooking procedure because i found in the installation procedure that each input has a built-in 10K pullup resistor connected to 5V.



Thanks for your help.

View user's profile Send private message
Reply with quote
Post
Any help???

View user's profile Send private message
Reply with quote
Post
Hi,

Sorry for the delay.

RaceCapture requires a square wave signal fed to the timer / pulse inputs. We typically recommend hall effect sensors for wheel speed sensors and similar.

Have you put a scope on the input to the RaceCapture to see what the signal looks like? That might be a good first step.

Also, Which wire is the black and white?

Let us know when you have this additional info and we'll help where we can.

Thanks,


_________________
Brent Picasso
Founder, Autosport Labs
